Patent No.: ZL2019 2 0992452.0 ZL2019 2 0991393.5 etc.

Equipment introduction

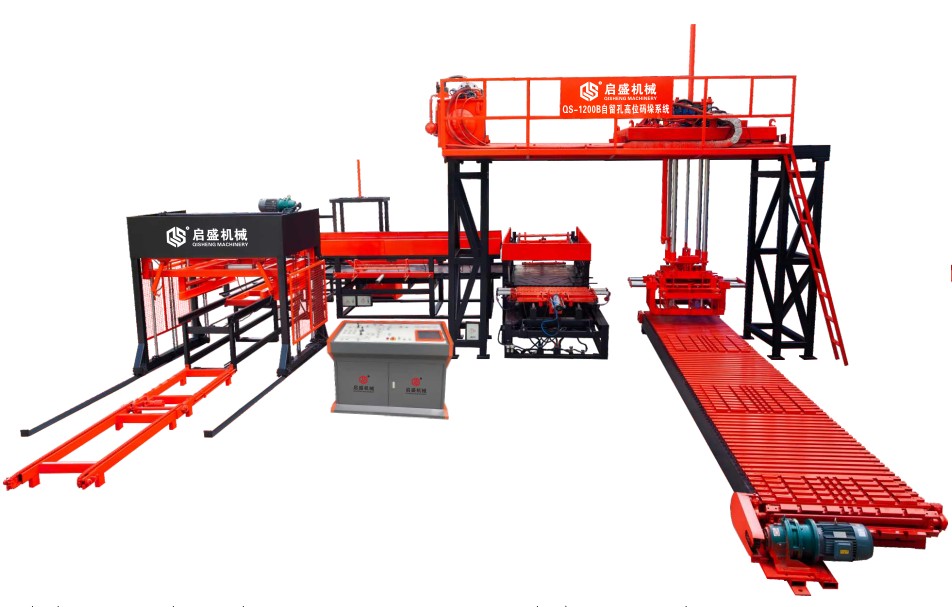

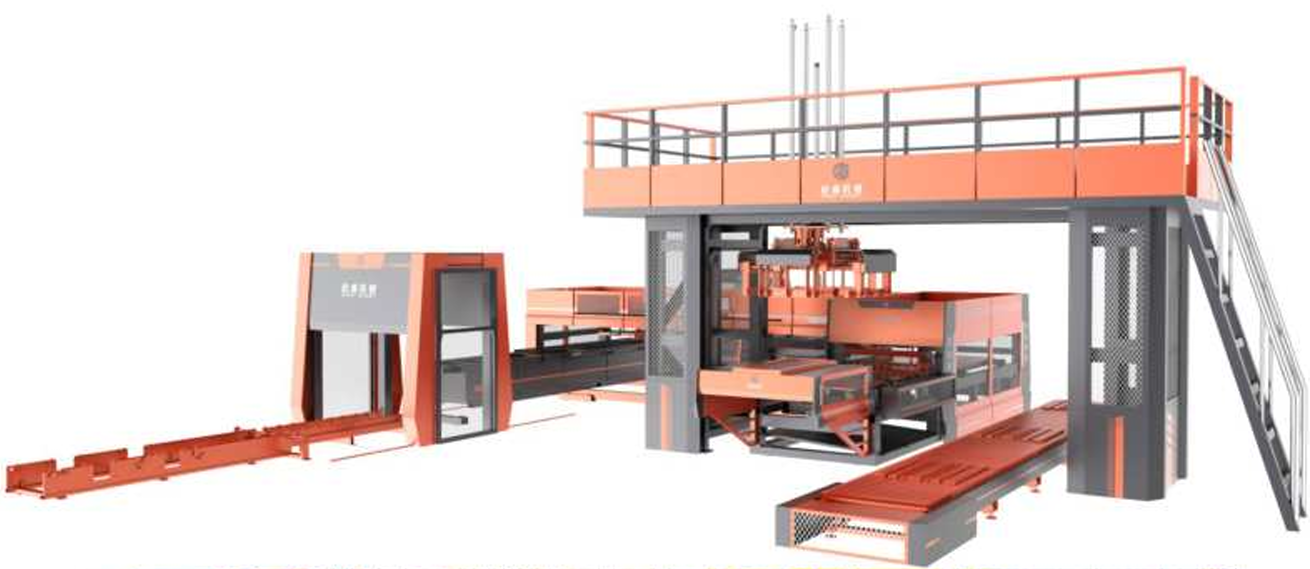

QS-1200B type self-retaining hole high-level palletizing system is a patented product with independent intellectual property rights developed by the company in order to meet the needs of market diversification. The production line is suitable for dry product palletizing of simple block production lines and belongs to semi-automatic palletizing production lines Generally it is independently installed near the product maintenance yard. For on-site palletizing of cured products it can also be connected in series in the block production line to implement online palletizing.

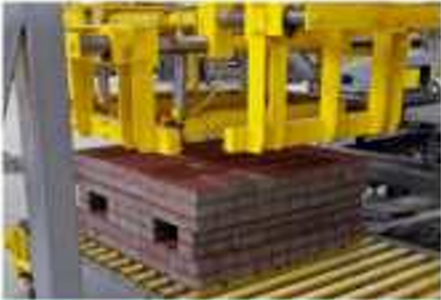

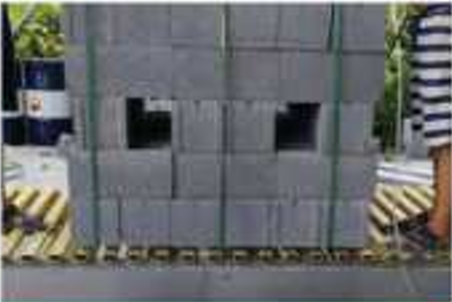

This automatic palletizing system can separate blocks of different types and specifications produced by different models of brick machines arrange blocks and finally form a square stack of about one meter for cross stacking and can automatically generate forks according to needs Brick holes. The stacking height can reach up to 1400mm. After the stacking is completed the whole stack is output by a heavy-duty chain conveyor which can be packed manually or equipped with an automatic packing machine. There are pre-stored positions for each node on the entire production line to save forklift running time.

The whole system adopts PLC + touch screen control with laser induction + Lingji sensor realizes unmanned automatic operation automatic shutdown alarm and display fault position speed in case of failure and can easily troubleshoot without professional technicians. Equipped with remote control system + cloud data equipment The manufacturer can solve all problems in the office all the time. The operation of the equipment is controlled separately by electricity gas and liquid without interfering with each other and the movement is coherent. It takes about 15 seconds to code one layer and the number of bricks per shift is about 150000 (standard bricks). .
