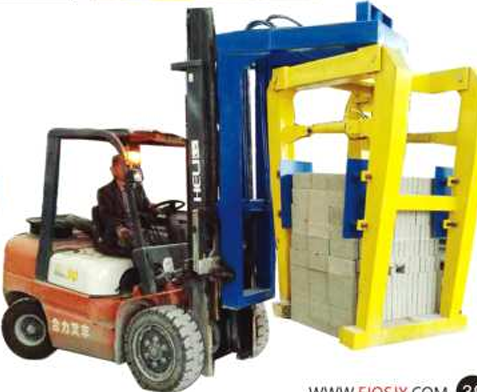

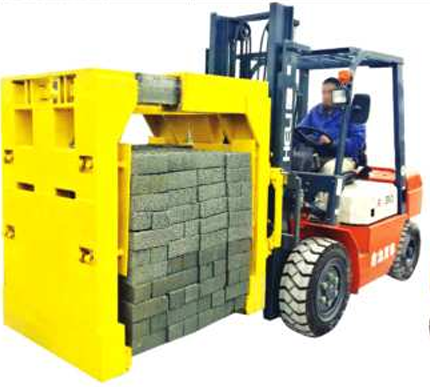

QS series forklift clamps can hold various types of bricks, and are suitable for palletless handling, stacking and loading operations in industries such as aerated concrete, autoclaved bricks, sintered bricks, unburned bricks, and concrete prefabricated parts.

Features:

1. It adopts the overall frame of all-steel structure with high strength, combined with the flexibility of the forklift, it runs smoothly and can meet the needs of different users for intensive operations.

2. Reasonable mechanism optimization, broad vision, simple and flexible operation.

3. The clamping arm is designed according to the force, which is firm and reliable, with large clamping force, large number of clamps and long service life.

4. Strong versatility, applicable to standard bricks, hollow bricks, eight bricks, pavement bricks, aerated blocks and other brick types.

5. Large stroke range.

6. The left and right side shift function ensures the flexibility of operation, and the forward shift function can realize the seamless docking of each stack of bricks.

The main technical parameters:

1. Arm range: 680—1150 (mm)

2. Clamping width: 1000mm

3. Brick size: 1000*1000*1000 (length*width*height)

4. Carrying capacity: 2000Kg

5. Quantity of bricks held at a time: 500-800 standard bricks, 40 hollow bricks

6. The number of layers of bricks: 10 layers of standard bricks, 5 layers of hollow bricks

7. Side shift distance: 100mm
